Product Overview
Applications
To fix lightweight fixtures in plastered and non-plastered insulating boards made of polystyrene and polyurethane.
The areas of application are:
- Façade construction (ETICS)
- Insulating construction
- Electric construction
- Refrigerated and climate construction
- Acoustic construction
Building materials
- Non-plastered, pressure-resistant insulating boards
- Plastered, pressure-resistant insulating boards
- ETICS insulating boards
* You can find detailed information on building materials in the registration document.
Assembly Instruction
Functioning

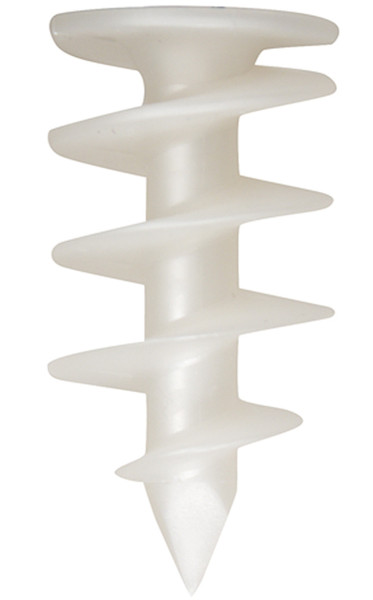

- The FID can be set in the insulating board with a cordless screwdriver or by hand.
- The special spiral thread taps itself in the insulating board.
- Fixtures are fixed with a 4.5 mm screw for the FID 50, and with a 6 mm screw for the FID 90.
- Water ingress in the insulation can be prevented by sealing the plug collar with a suitable sealant after successful pre-positioned installation.
| Product Variant | Anchor lengthl[mm] | Min. bolt penetration[mm] | Wood and chipboard screws[mm] | Drive | Max. bolt penetration screw[mm] |
|---|---|---|---|---|---|
|
FID 50 Art.-No. 048213 |
50 | 50 | 4,5 - 5 | T40 | 40 |
| FID 90 Art.-No. 510971 | 90 | 90 | 6 | 6 mm hex | 80 |
6mm hex bits can be purchased here
