Product Overview

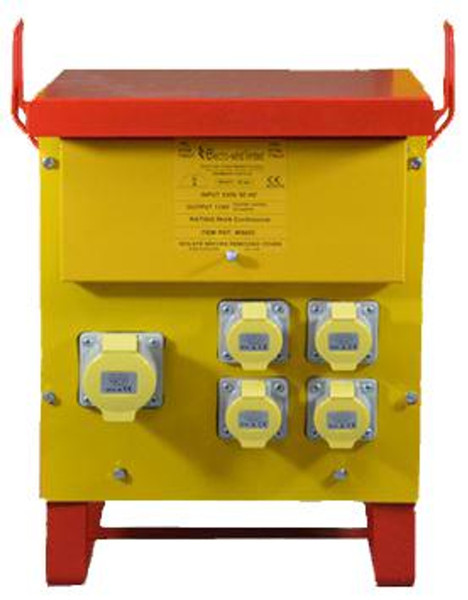

5 kVA 1ph portable site transformer. Made to comply with reduced low voltage regulations ensuring safe electrical supplies on site. Robust IP23 painted steel case c/w carry handles.
- Double-wound design for mains isolation
- Insulated drip proof portable steel case (IP23)
- 110v centre tapped to earth (cte) secondary winding to reduce the risk of shocks
- Input terminal strip for hard wired connecting
- Input DP type D MCB, reducing the chance of overload
- 4 x output 16A 3pin sockets, 1 x output 32A 3pin sockets (BSEN 60309)
- 2 x 20A DP type C MCBs protecting the output 16A sockets
- 1 x 32A DP type C MCBs protecting the output 32A socket
- Manufactured to BSEN 61558
| Power | 5kVA 1ph |
| Duty | Continuous |
| Input voltage | 230vac 1ph |
| Output voltage | 110vac 1ph |
| Sockets | 4 x 16A 3pin, 1 x 32A 3pin |
| Dimensions (mm) | H: 570, W: 420, D: 440 |
| Weight (kg) | 46 |
**This product may de delivered on a pallet**
